CSD3000 Diamond Core Drilling Rig

Category： Crawler Track& Skid Mounted Rig

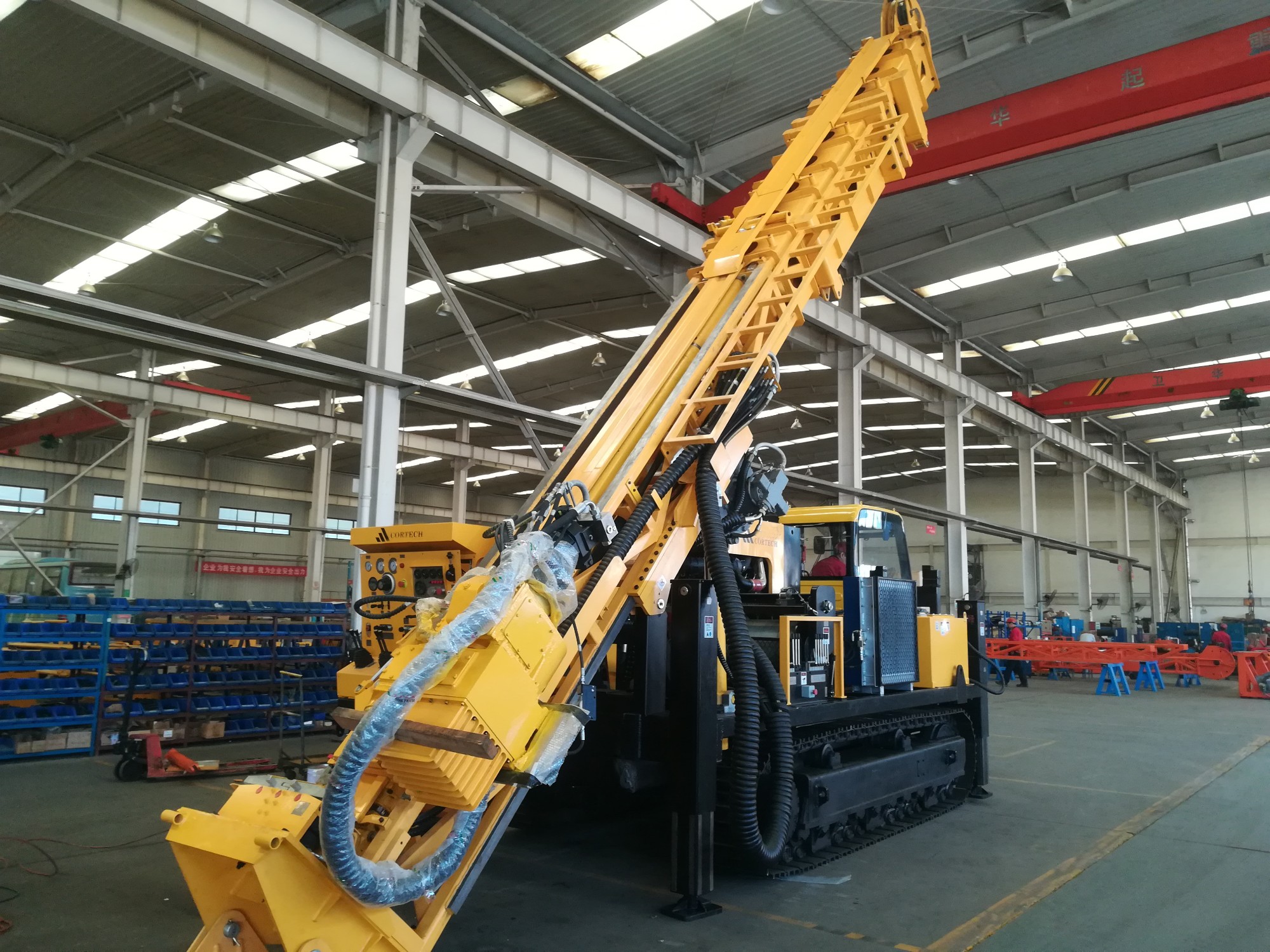

Product description：CSD3000 core drilling rig is specially designed for diamond core drilling. Robust structure plus strong power supply ensures high penetration rate and outstanding reliability.
INQUIRY EMAIL

CSD3000 core drilling rig is specially designed for diamond core drilling. Robust structure plus strong power supply ensures high penetration rate and outstanding reliability.

Features

● Crawler mounted design;

● 4 speeds gear box ；

● Big chuck diameter up to 117mm；

● Independent hydraulic leveling jacks;

● Drill head has sliding function ;

● Telescopic mast;

● Mast has dump function；

● The rod collection support with capacity of 200x9m(NS rod) in the middle part of the mast；

● Independent hydraulic cooling system；

● Premium hydraulic components of European/US origin。

After sales service

Our expert service engineer team is globally available, 24/7.

Note

Rigs are available with different mounting options and diesel or electric drive options. Please contact sales@cortechdrilling.com for more information.

Technical Parameter:

Drilling Capacity
Diameter of Drill Rod	BS 、NS 、HS 、PS
Drilling Depth	3,000m 2,300m 1,600m 1,050m
Engine
Model	Cummins 6LTAA8.9-C325
Type	Turbo
Power	239KW
RPM	2,200rpm
Drill Head
Max Torque	8,170Nm
Max Rotation	1,250rpm
Feed Stroke	3,450mm
Max Inside Diameter	117mm
Pull/Push	250KN/90KN
Main Winch
Max Pull	185KN
Pulling Speed	25m/min(low),60m/min(high)
Rope Diameter	24mm
Rope Length	40m
Wireline Winch
Max Pull	18KN（bare drum）
Pulling Speed	150m/min（bare drum）
Rope Diameter	6.6mm
Rope Length	2,500m
Mast
Length	11.2-13.7m
Drilling Angle	45°～90°
Dump Length	1.4m
Foot Clamp
Drill Rod	BS, NS, HS, PS
Travelling Capacity
Max. Permissible Gradient	30°
Max. Travelling Speed	2km/h
Transporting Dimensions
LWH	11,240×2,310×3,330mm
Total Weight
Total Weight	23.5t
