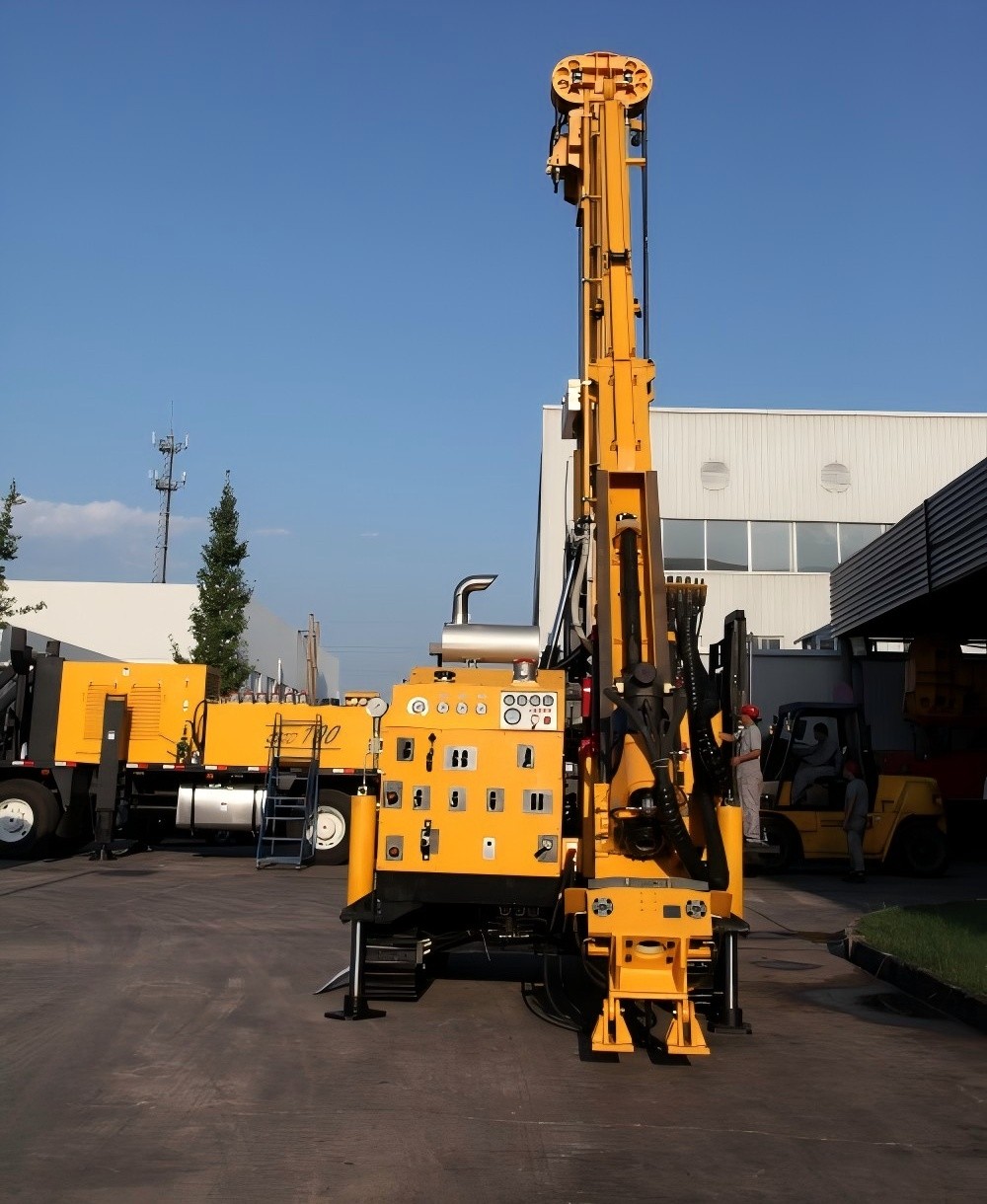

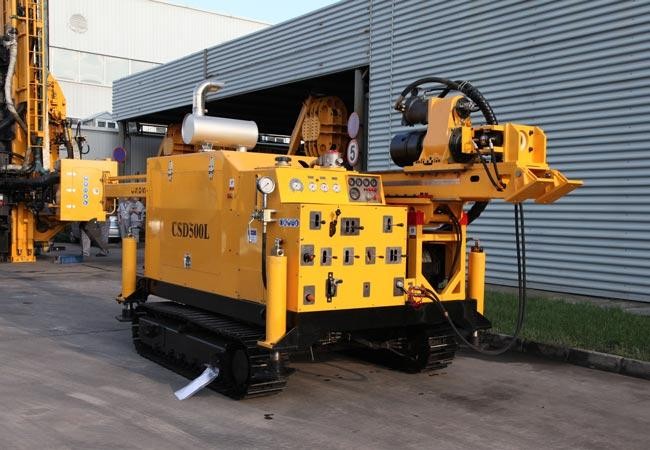

Features:
● Crawler track mounted；
● Applicable for drilling in narrow job site；
● Mast has dump function；
● Equipped with Main Winch, Wireline Winch, Mud Pump and Mud Mixer；
● Floating head protects the rod threads during make up and break out;
● Equipped with Foot Clamp, with hydraulic open and closed；
● Accurate control of feed pressure;
● Premium hydraulic components of European/US origin;
After sales service
Our expert service engineer team is globally available, 24/7.
Note
Rigs are available with different mounting options and diesel or electric drive options. Please contact sales@cortechdrilling.com for more information.
Technical Specifications
|
Drilling Capacity |
|
|
Diameter of Drill Rod |
B,N,H |
|
Drilling Depth |
650m 500m 300m |
|
Engine |
|
|
Model/ Type |
Cummins 4BTA3.9-C110 Turbo |
|
Power |
82KW |
|
RPM |
2,200rpm |
|
Drill Head |
|
|
Max. Torque |
1,400Nm |
|
Max Rotation |
1,000rpm |
|
Feed Stroke |
1,800mm |
|
Max Inside Diameter |
97mm |
|
Pull/Push |
70KN/35KN |
|
Main Winch |
|
|
Max Pull |
40KN |
|
Pulling Speed |
35m/min |
|
Rope Diameter |
14mm |
|
Rope Length |
30m |
|
Wireline Winch |
|
|
Max Pull |
10KN(bare drum) |
|
Pulling Speed |
110m/min(bare drum) |
|
Rope Diameter |
5mm |
|
Rope Length |
600m |
|
Mast |
|
|
Length |
8.6m |
|
Drilling Angle |
45°-90° |
|
Foot Clamp |
|
|
Drill Rod |
B, N, H, P |
|
Travelling Capacity |
|
|
Max Permissible Gradient |
20° |
|
Max Travelling Speed |
1.7km/h |
|
Transporting Dimensions |
4,570×2,000×2,425mm(L*W*H) |
|
Total Weight |
|
|
Total Weight |
5.7t |
