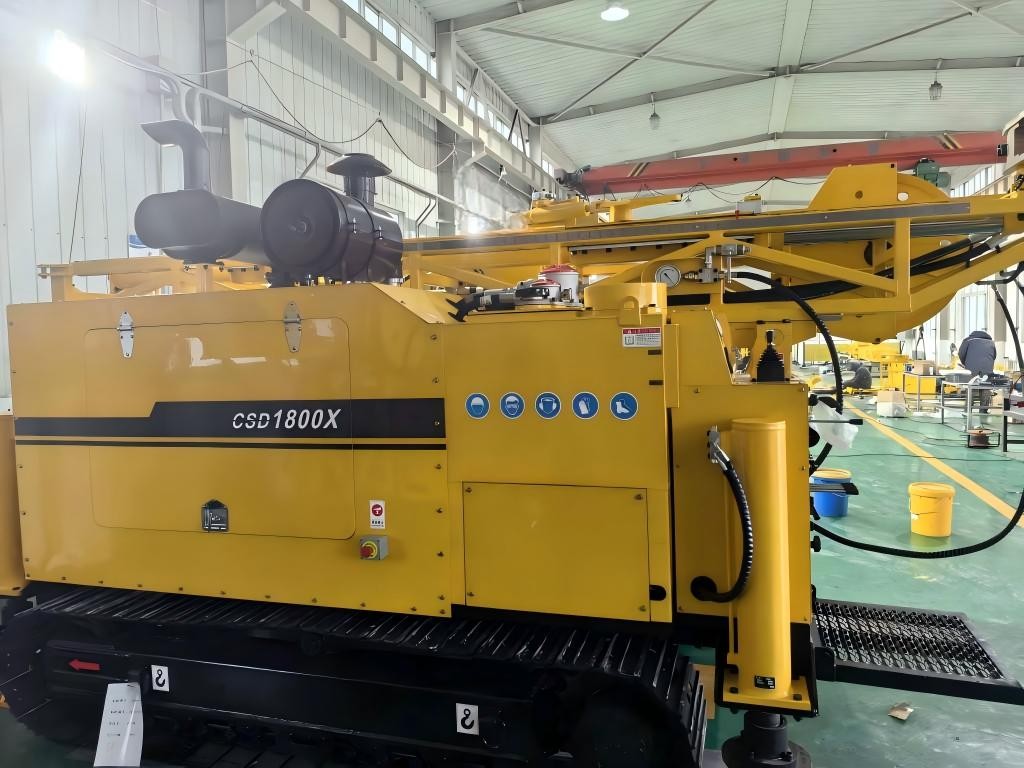

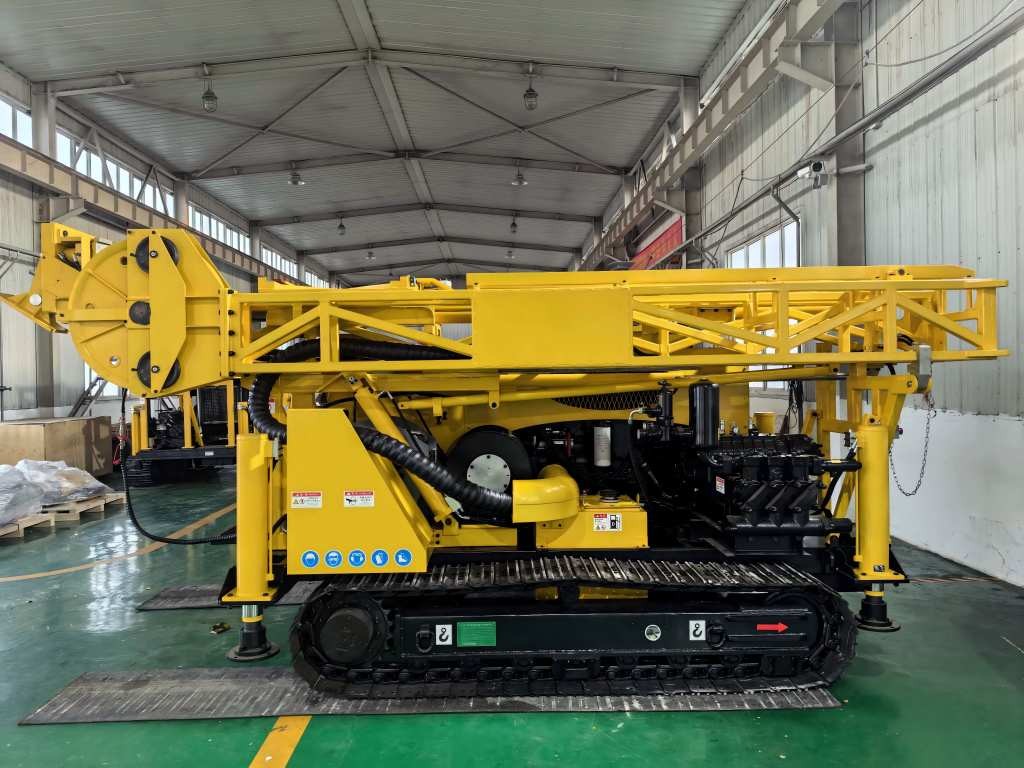

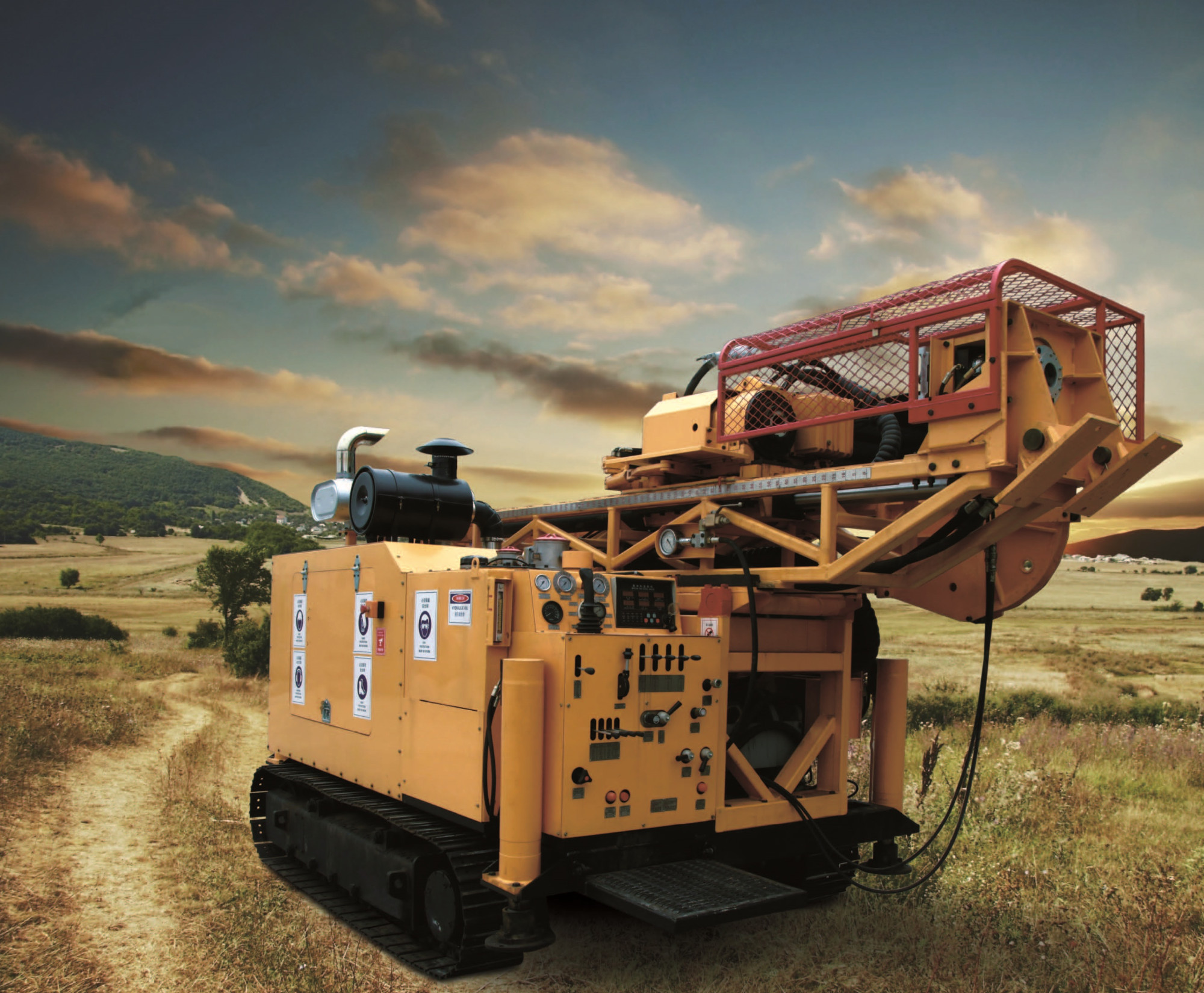

CSD1800X Diamond Core Drilling Rig

Category： Crawler Track& Skid Mounted Rig
Product description：CSD1800X core drilling rig is specially designed for diamond core drilling. Track crawler mounted rig facilitates moving around with great convenience.
INQUIRY EMAIL

Features：

● 4 speeds gear box ；

● Big chuck diameter up to 117mm；
● Stroke of drill head 3.5m suitable for 3m length rods；
● Drill head has sliding function ;
● Mast has dump function；
● Mast folding design minimizes transportation dimensions；
● Independent hydraulic leveling jacks;
● Accurate control of feed pressure;
● Floating head protects the rod threads during make up and break out;
● Real time display of drilling data on the control panel gauges;
● Hydraulically controlled mud pump flow at the rig control panel;
● Premium hydraulic components of European/US origin;

● Wire line winch with automatic rope spooler.

After sales service

Our expert service engineer team is globally available, 24/7.

Note

Rigs are available with different mounting options and diesel or electric drive options. Please contact sales@cortechdrilling.com for more information.

Technical Specifications

Drilling Capacity
Diameter of Drill Rod	B, N, H, P
Drilling Depth	2,000m 1,700m 1,200m 700m
Engine
Model	Cummins 6CTA8.3
Type	Turbo
Power	179KW
RPM	2,200rpm
Drill Head
Max Torque	5,500Nm
Max Rotation	1,050rpm
Feed Stroke	3,500mm
Max Inside Diameter	117mm
Pull/Push	189KN/50KN
Main Winch
Max Pull	135KN
Pulling Speed	33m/min(LOW),49m/min(HIGH)
Rope Diameter	22mm
Rope Length	35m
Wireline Winch
Max Pull	11KN(bare drum)
Pulling Speed	120m/min
Rope Diameter	6.6mm
Rope Length	1,500m
Mast
Length	10m
Drilling Angle	45°-90°
Dump Length	1.1m
Foot Clamp
Drill Rod	B, N, H, P
Travelling Capacity
Max. Permissible Gradient	30°
Max. Travelling Speed	2km/h
Transporting Dimensions
LWH	5,250×2,320×2,600mm
Total Weight
Total Weight	11.3t
