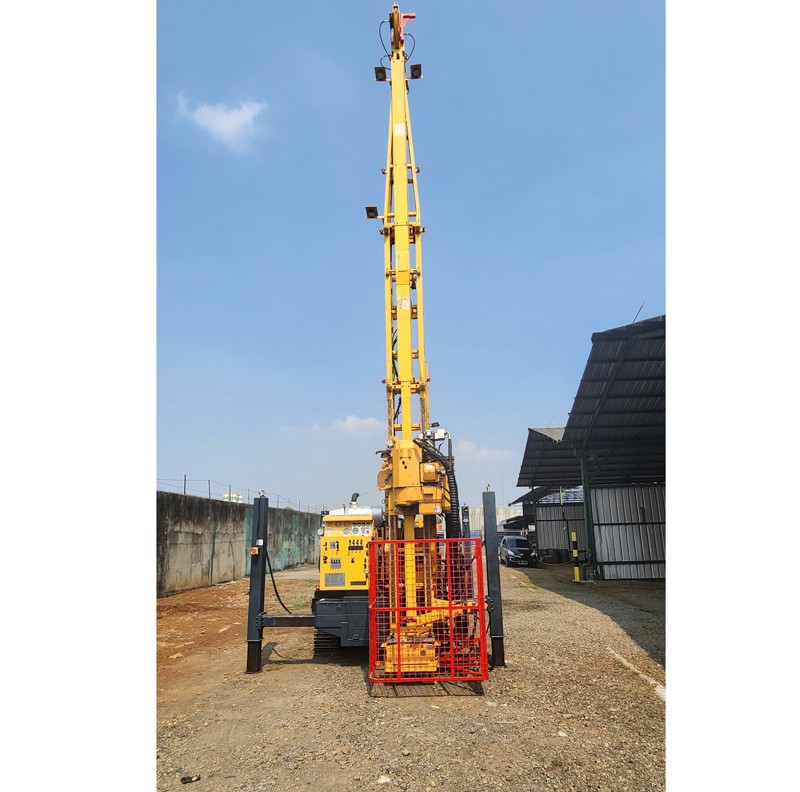

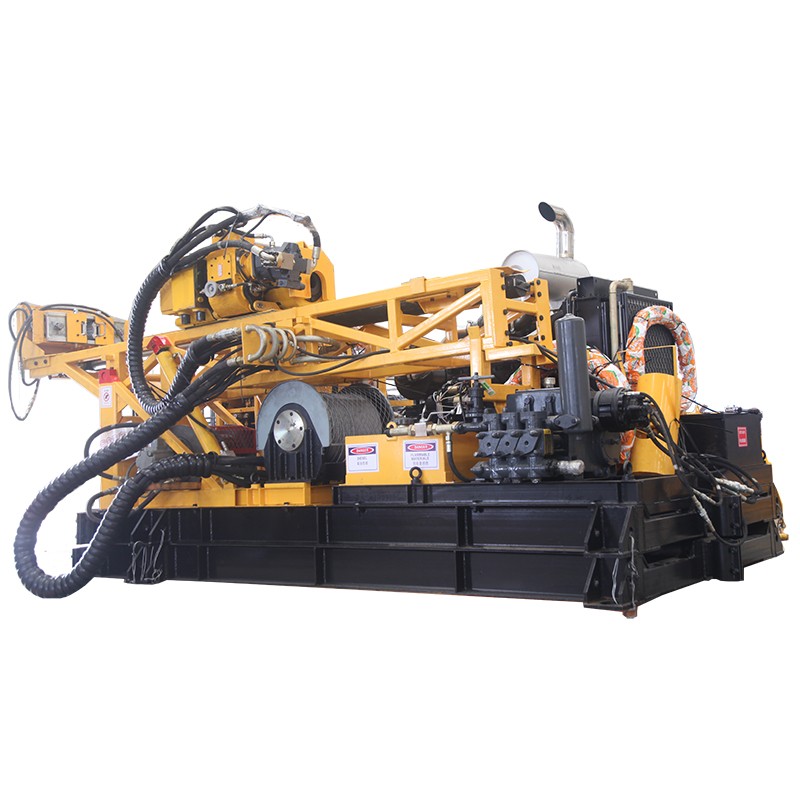

Features:

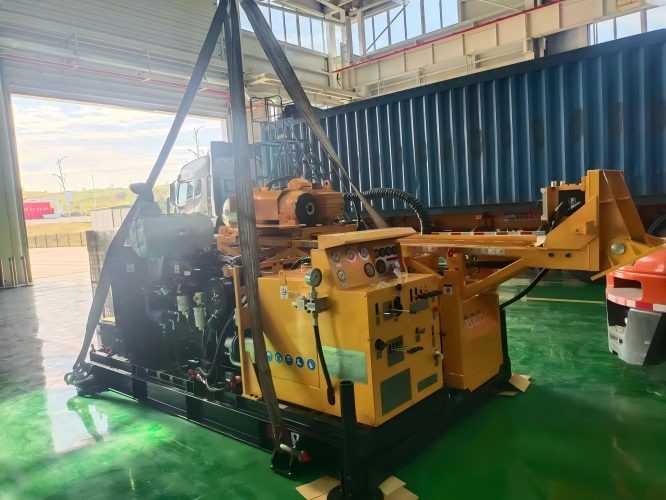

● Modularized design with maximum unit weight of 700kg;
● A second base frame is supplied which is positioned on the next hole to be drilled, minimizing down time in rig transportation from hole to hole;
● 4 speed transmission;
● Max chuck diameter up to 117mm;
● 2m stroke of drill head suitable for 1.5m rods；
● Independent hydraulic leveling jack legs;
● Precise control of pressure on drill bit;
● Standardized parts and components;
● Real time display of drilling data on the control panel gauges;
● Premium hydraulic components of European/US origin;
After sales service
Our expert service engineer team is globally available, 24/7.
Note
Rigs are available with different mounting options and diesel or electric drive options. Please contact sales@cortechdrilling.com for more information.
Technical Specifications
|
Drilling Capacity |
|
|
Diameter of Drill Rod |
B,N,H,P |
|
Drilling Depth |
1,300m 1,000m 700m 400m |
|
Engine |
|
|
Model |
Cummins 6BTA-5.9 |
|
Type |
Turbo |
|
Power |
132KW |
|
RPM |
2500rpm |
|
Drill Head |
|
|
Max Torque |
4257Nm |
|
Max Rotation |
1182rpm |
|
Feed Stroke |
2000mm |
|
Max Inside Diameter |
117mm |
|
Pull/Push |
127KN/50KN |
|
Main Winch |
|
|
Max Pull |
68KN |
|
Pulling Speed |
28m/min(low speed), 56m/min(high speed) |
|
Rope Diameter |
16mm |
|
Rope Length |
30m |
|
Wireline Winch |
|
|
Max Pull |
11KN(bare drum) |
|
Pulling Speed |
120m/min(bare drum) |
|
Rope Diameter |
6.6mm |
|
Rope Length |
1,000m |
|
Mast |
|
|
Length |
10m |
|
Drilling Angle |
45° |
|
Foot Clamp |
|
|
Drill Rod |
B, N, H, P |
|
Transporting Dimensions |
|
|
L*W*H |
4,700×2,300×2,000mm |
|
Total Weight |
|
|
Max Unit Weight |
700kg |
|
Total Weight |
5900kg |
