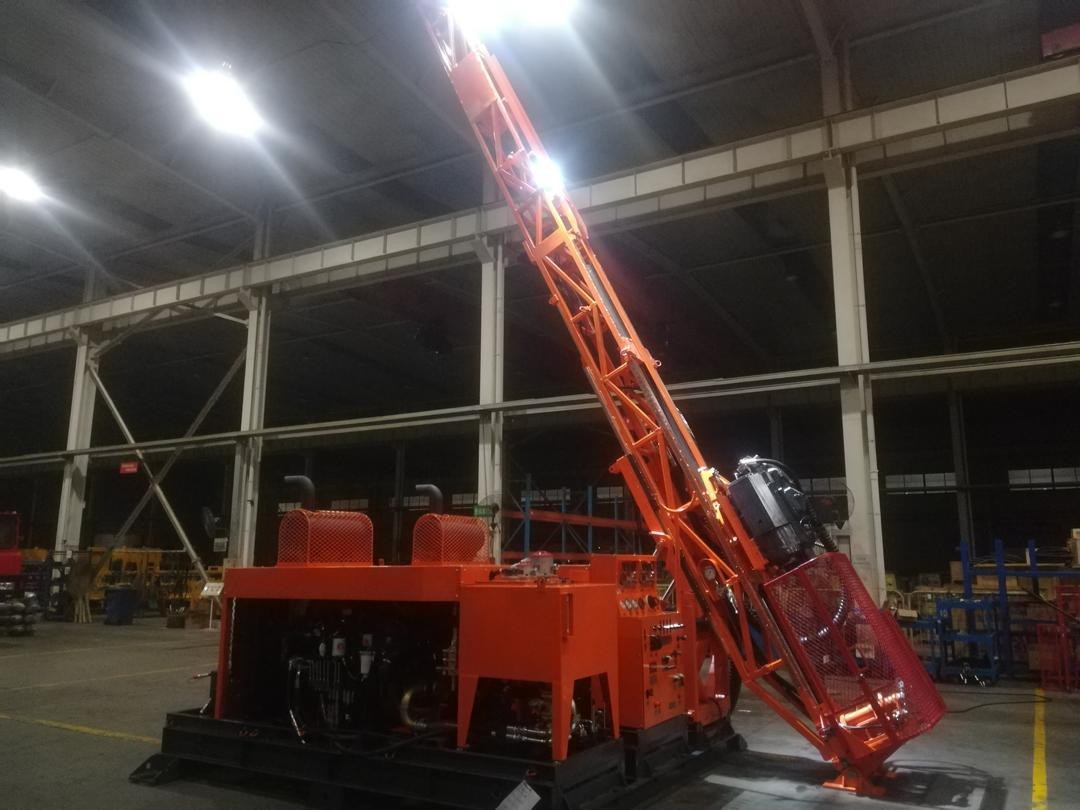

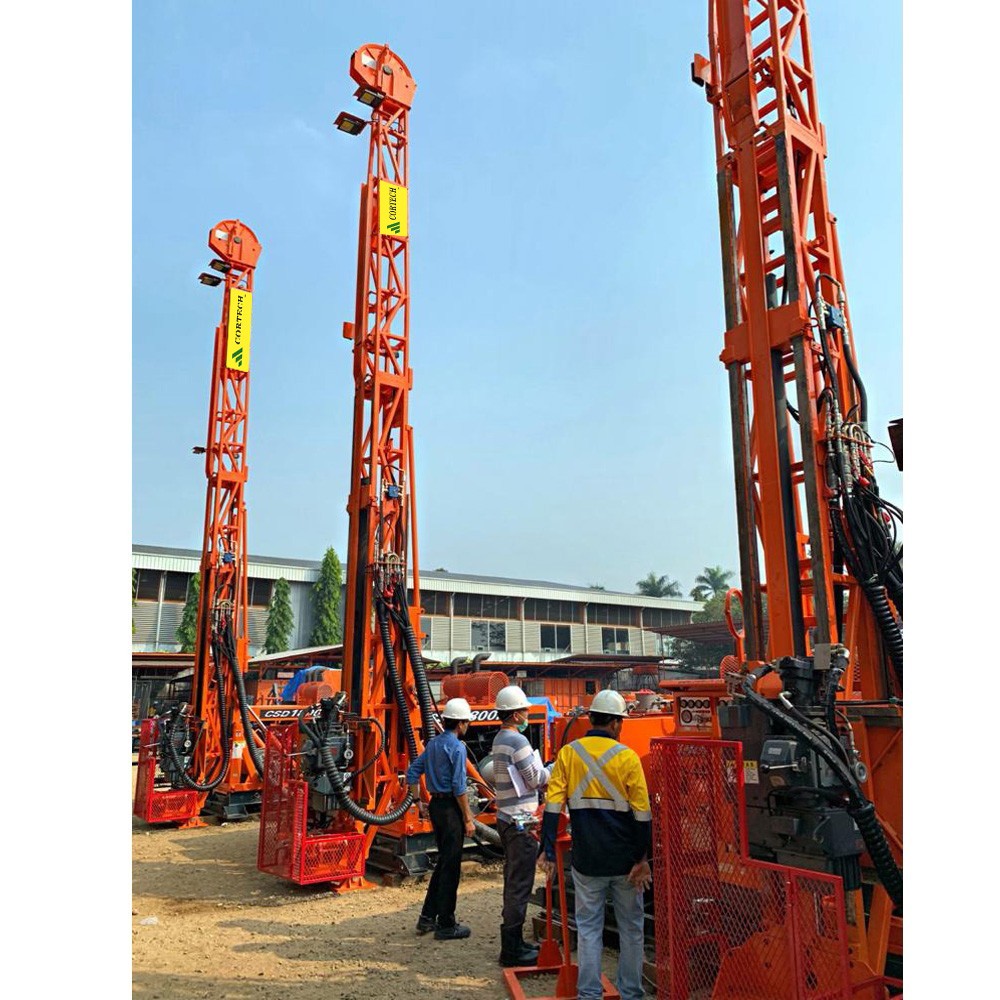

Features:
● Modularized design with maximum unit weight of 820kg;
● A second base frame is supplied which is positioned on the next hole to be drilled, minimizing down time in rig transportation from hole to hole;
● 4 speed transmission;
● Max chuck diameter up to 117mm;
● 3.3m stroke of drill head suitable for 3m rods；
● Independent hydraulic leveling jack legs;
● Precise control of pressure on drill bit;
● Standardized parts and components;
● Real time display of drilling data on the control panel gauges;
● Premium hydraulic components of European/US origin;
After sales service
Our expert service engineer team is globally available, 24/7.
Note
Rigs are available with different mounting options and diesel or electric drive options. Please contact sales@cortechdrilling.com for more information.
Technical Specifications
Drilling
Capacity
Diameter of Drill Rod
B,N,H,P
Drilling Depth
2,000m 1,700m
1,200m 700m
Engine
Model
Cummins 6BTA-5.9
Type
Turbo
Power
132KW
RPM
2200rpm
Drill
Head
Max Torque
5500Nm
Max Rotation
1200rpm
Feed Stroke
2000mm
Max Inside Diameter
117mm
Pull/Push
189KN/50KN
Main
Winch
Max Pull
135KN
Pulling Speed
35m/min (bare drum/low speed), 65m/min(bare
drum/ high speed)
Rope Diameter
22mm
Rope Length
35m
Wireline
Winch
Max Pull
11KN (bare drum)
Pulling Speed
120m/min (bare drum)
Rope Diameter
6.6mm
Rope Length
1,500m
Mast
Length
10m
Drilling Angle
45° - 90°
Foot
Clamp
Drill Rod
B, N, H, P
Transporting
Dimensions
L*W*H
5100 X 3500 X 2100 mm
Total
Weight
Max Unit Weight
820kg
Total Weight
6130 kg
