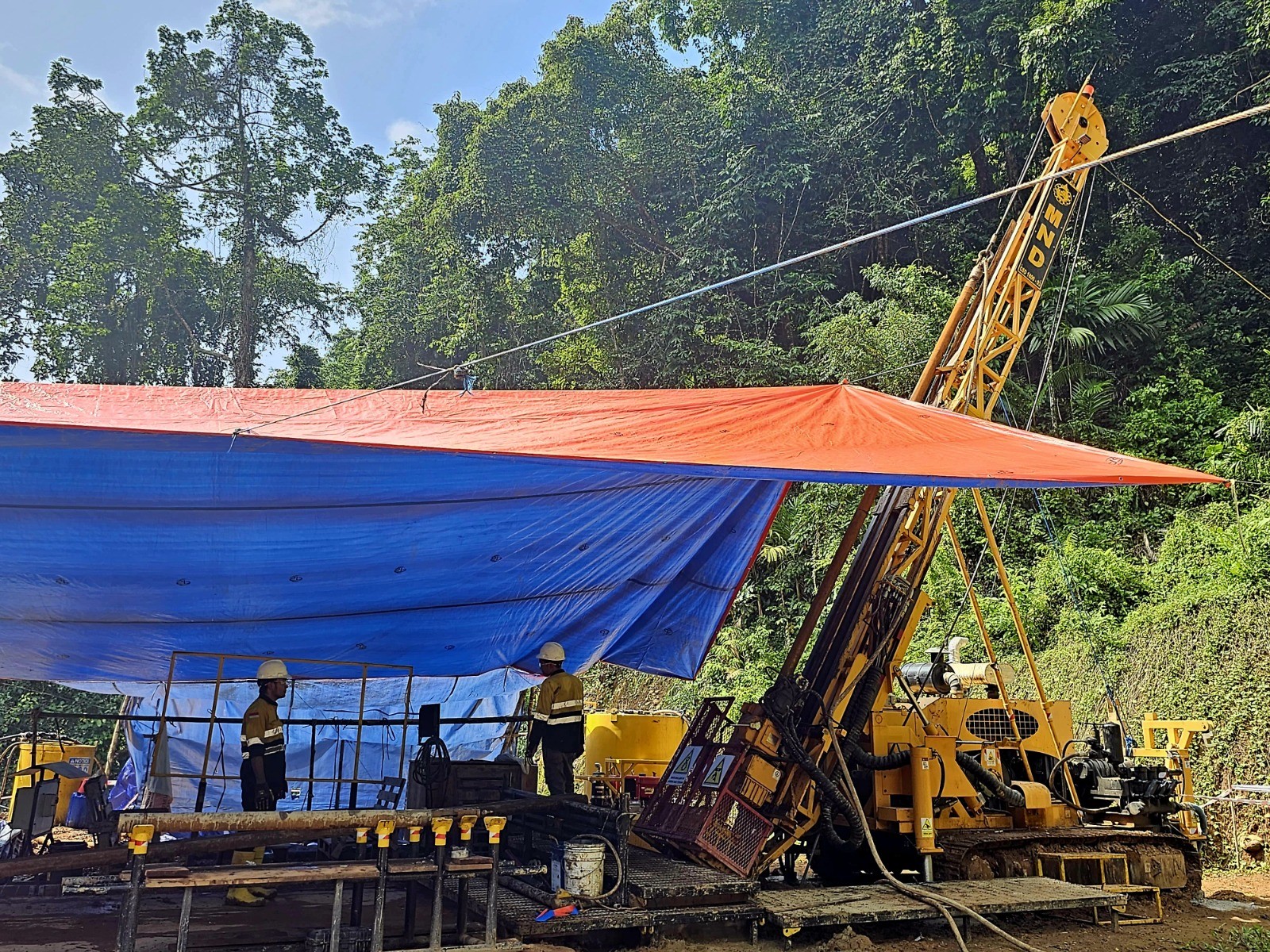

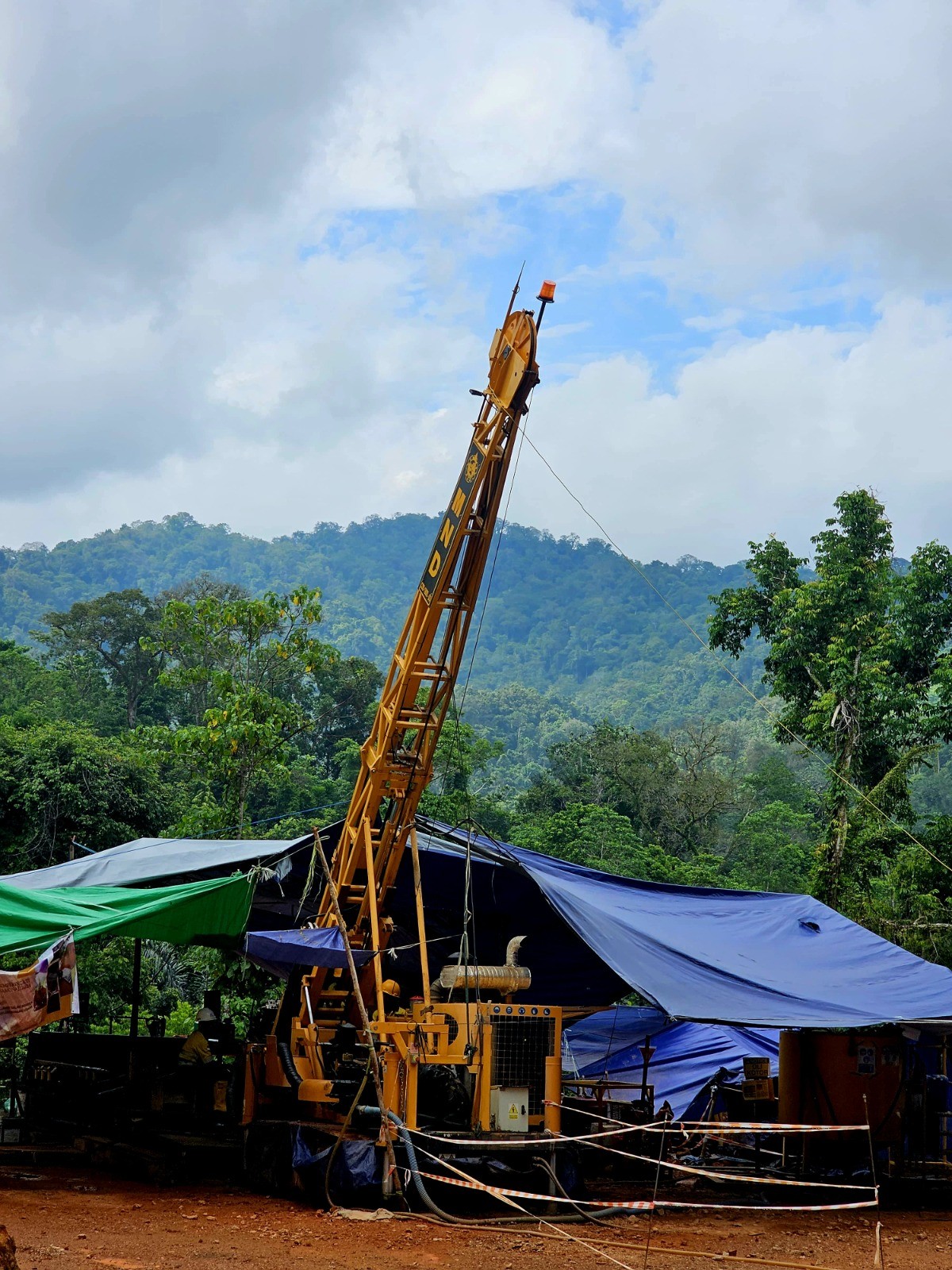

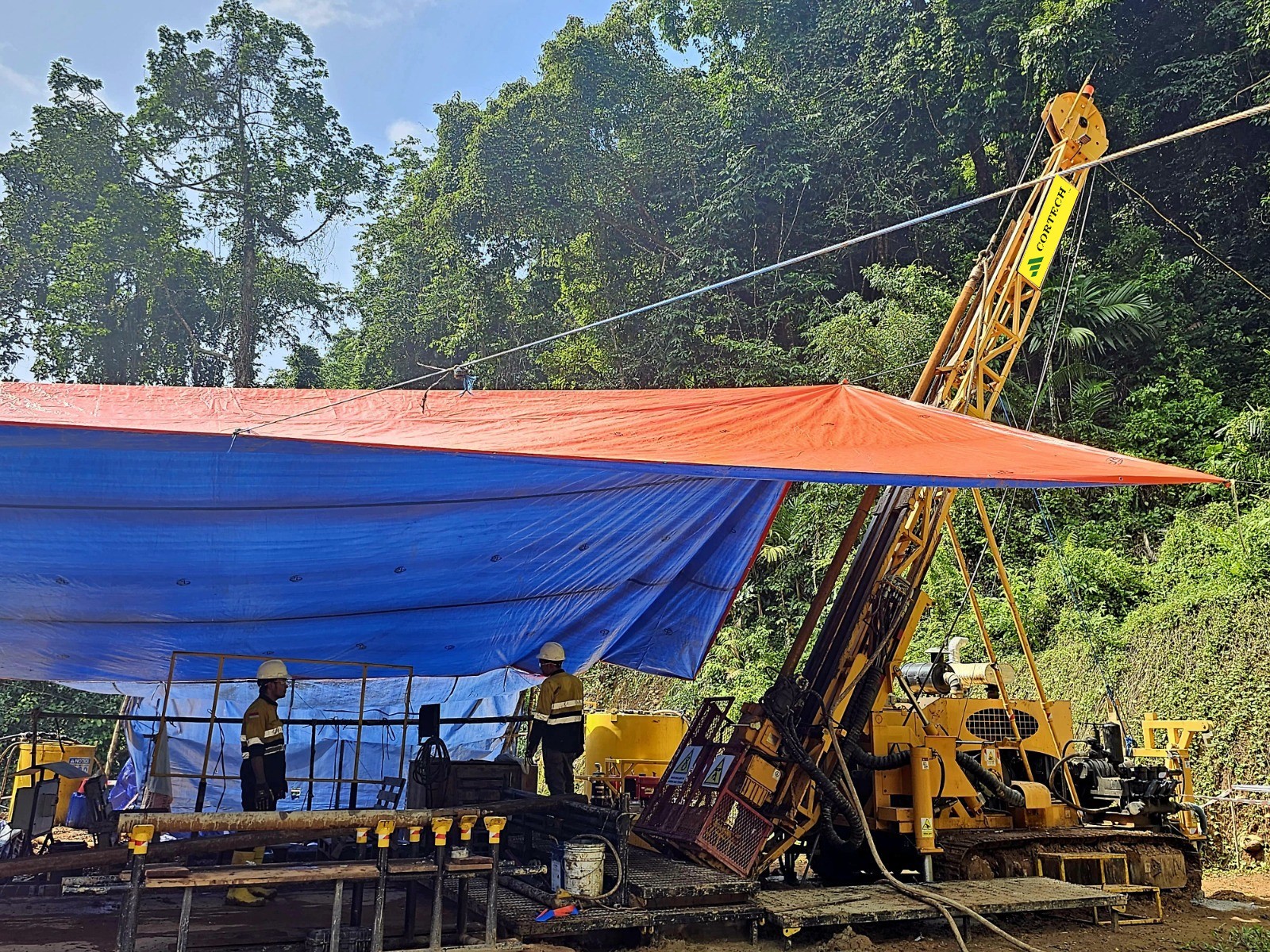

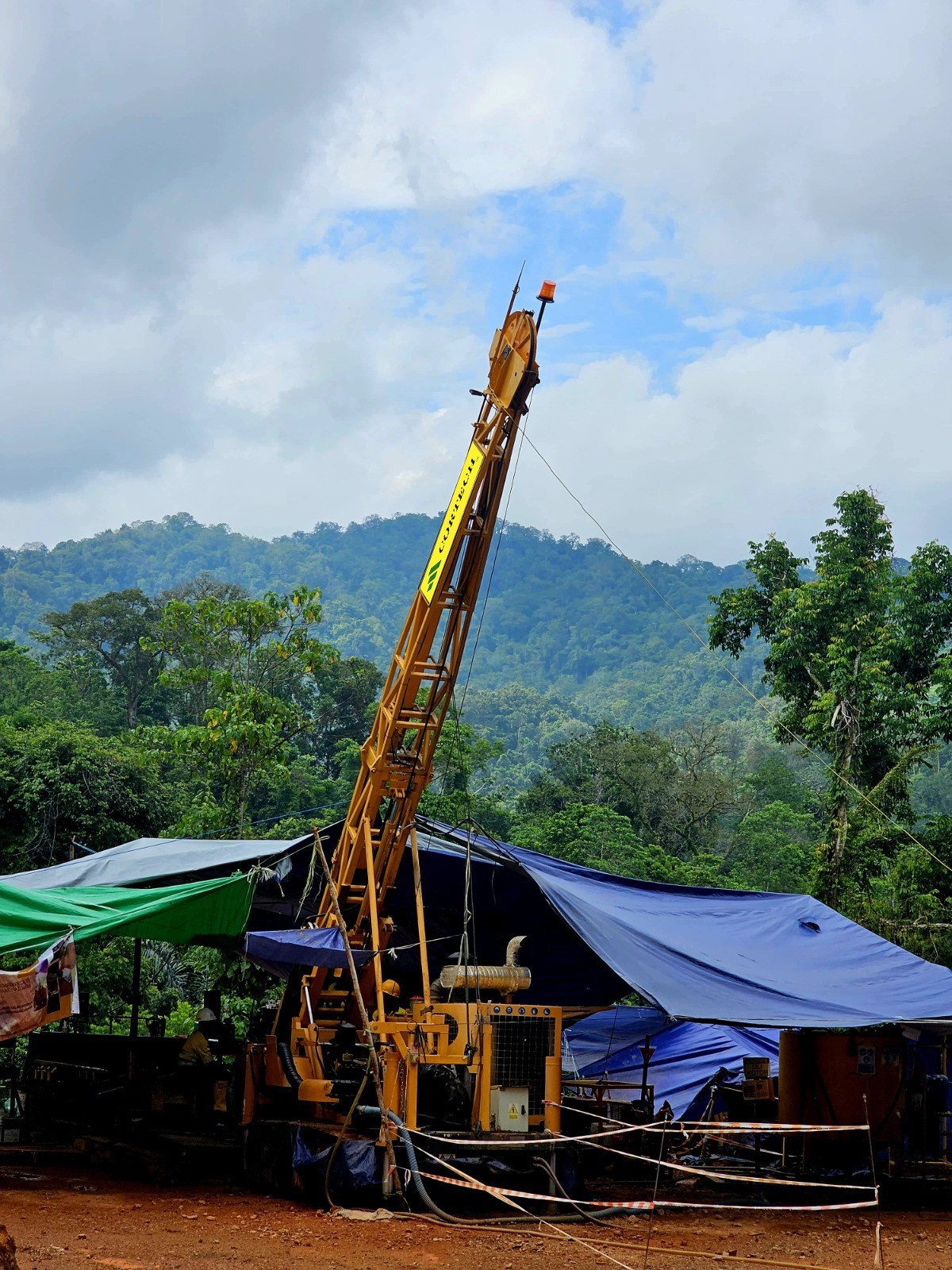

CSD1300H Heli Rig

Features:

● Modularized design with maximum unit weight of 700kg;

● A second base frame is supplied which is positioned on the next hole to be drilled, minimizing down time in rig transportation from hole to hole;

● 4 speed transmission;

● Max chuck diameter up to 117mm;

● 2m stroke of drill head suitable for 1.5m rods；

● Independent hydraulic leveling jack legs;

● Precise control of pressure on drill bit;

● Standardized parts and components;

● Real time display of drilling data on the control panel gauges;

● Premium hydraulic components of European/US origin;

Technical Specifications

Drilling Capacity
Dia of Drill Rod	B,N,H,P
Drilling Depth	1,300m 1,000m 700m 400m
Engine
Model	Cummins 6BTA-5.9
Type	Turbo
Power	132KW
RPM	2500rpm
Drill Head
Max Torque	4257Nm
Max Rotation	1182rpm
Feed Stroke	2000mm
Max Inside Diameter	117mm
Pull/Push	127KN/50KN
Main Winch
Max Pull	68KN
Pulling Speed	28m/min(low speed), 56m/min(high speed)
Rope Diameter	16mm
Rope Length	30m
Wireline Winch
Max Pull	11KN(bare drum)
Pulling Speed	120m/min(bare drum)
Rope Diameter	6.6mm
Rope Length	1,000m
Mast
Length	10m
Drilling Angle	45°
Foot Clamp
Drill Rod	B, N, H, P
Transporting Dimensions
LWH	4,700×2,300×2,000mm
Total Weight
Max Unit Weight	700kg
Total Weight	5900kg
