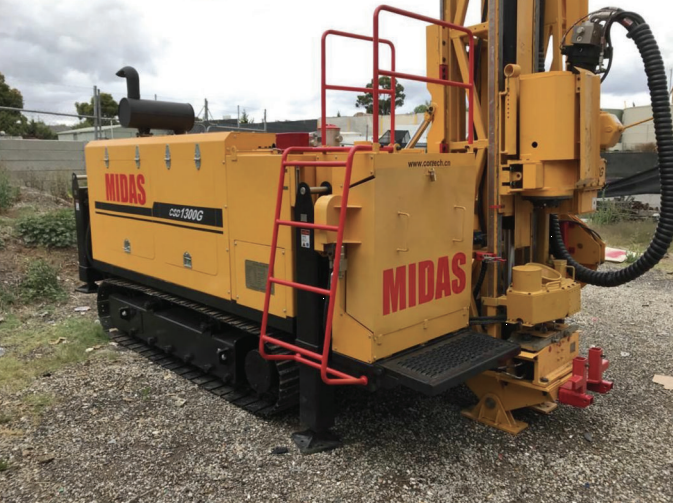

CSD1300G drilling rig is a track mounted diamond core drilling rig. The CSD1300G is an upgraded version of CSD1300L. Both models have the same capacity of N size rod 1000m.
Fetures：
● 4 speed transmission;
● Big chuck diameter up to 117mm；
● Stroke of drill head 3.5m suitable for 3m length rods；
● Mast has dump function；
● Mast folding design minimizes transportation dimensions；
● Independent hydraulic leveling jack legs;
● Accurate control of feed pressure;
● Floating head protects the rod threads during make up and break out;
● Real time display of drilling data on the control panel gauges;
● Hydraulically controlled mud pump flow at the rig control panel;
● Premium hydraulic components of European/US origin;
● Powerful main winch of US origin；
● Wire line winch with automatic rope spooler.
Technical Specifications
Dia of Drill Rod
B, N, H, P
Drilling Depth
1,300m 1,000m 700m 400m
Engine
Model
Cummins 6BTA5.9-C180
Type
Turbo
Power
132KW
RPM
2,500rpm
Drill Head
Max Torque
4,257Nm
Max Rotation
1,182rpm
Feed Stroke
3,500mm
Max Inside Diameter
117mm
Pull/Push
120KN/50KN
Main Winch
Max Pull
68KN
Pulling Speed
28m/min(low),65m/min(high)
Rope Diameter
16mm
Rope Length
30m
Wireline Winch
Max Pull
11KN(bare
drum)
Pulling Speed
120m/min(bare
drum)
Rope Diameter
6.6mm
Rope Length
1,000m
Mast
Length
10m
Drilling Angle
45°-90°
Dump Length
1.4m
Foot Clamp
Drill Rod
B, N, H, P
Travelling
Capacity
Max. Permissible Gradient
30°
Max. Travelling Speed
2km/h
Transporting
Dimensions
L*W*H
5,430×2,300×2,600mm
Total Weight
Total Weight
10.3t
